PostgreSQL Data Sync

This comprehensive document will walk you through the step-by-step configuration process for PostgreSQL data sync and address specific use cases tailored to PostgreSQL .

Pre-requisites

Your PostgreSQL tables must have a primary key column. If you don't have it, please refer to the section below on adding it.

Standard Data Sync functionality

Please refer to Data Sync - Getting Started for the standard data sync functionality. The getting started document covers the usage of data sync features valid for all integrations.

Configuring PostgreSQL Data Sync

Step 1: Start the Sync Setup

1. Log in to your Byteline account and navigate to the My Syncs page.
2. Click on the "Create Sync" button to begin the configuration.

Step 2: Select PostgreSQL as Your First App

1. Choose PostgreSQL as the first app to sync.
   Alternatively, you can select another app first and then pick PostgreSQL as the second app.



2. Click on the "Sign In" button under PostgreSQL to connect it to Byteline.
3. Now select the PostgreSQL schema that you want to use.

Step 3: Connect the Second App

1. Select the second app for syncing and log in to authorize the connection.
2. Once connected, click "Continue" to move to the table mapping screen.

Step 4: Map Tables Between PostgreSQL and the Other App

1. Select the tables you want to sync between the two apps.

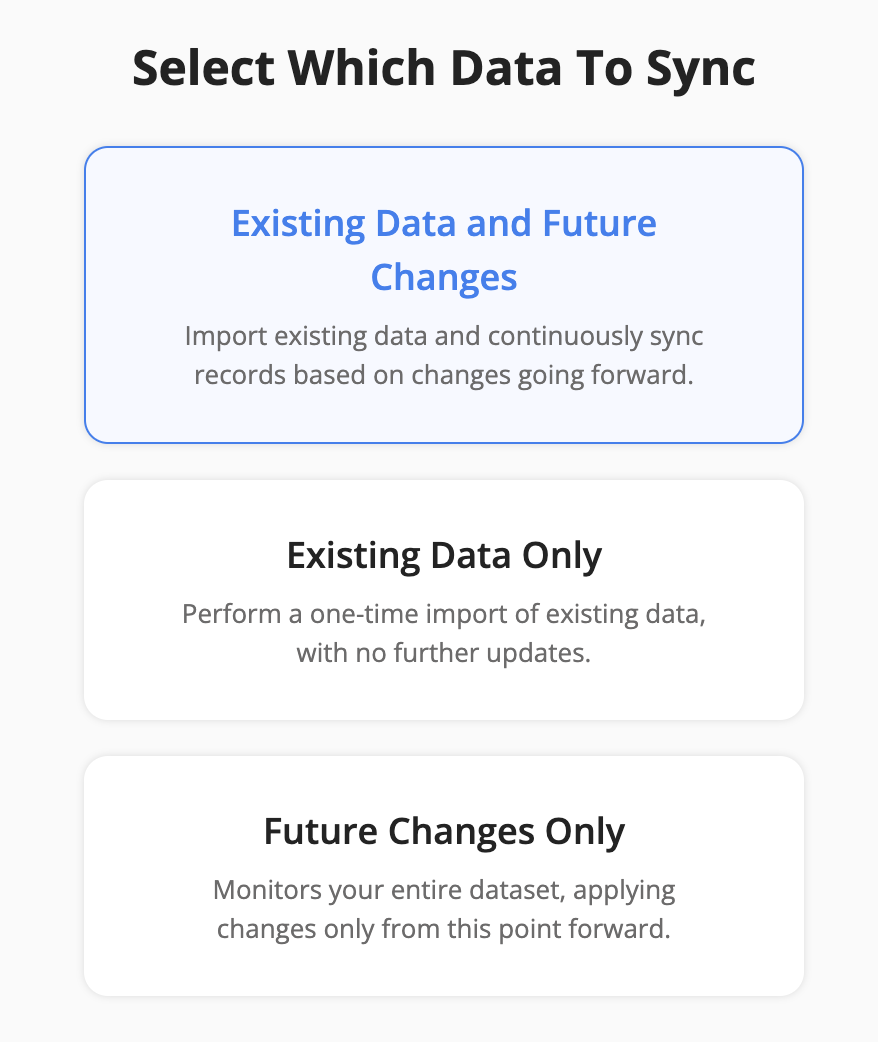

Step 5: Select Which Data to Sync

Step 6: Configure Field Mapping

1. On the Field Mapping screen, drag and drop fields from the right panel into the mapped fields column to create mappings.



2. To delete a mapping, click the X button next to the field.
3. Select the sync direction at the field level using the arrow buttons.
   One-Way Sync: Data flows from one app to the other.
   Two-Way Sync: Data flows bidirectionally between both apps.
4. Once your mappings are finalized, click "Continue."

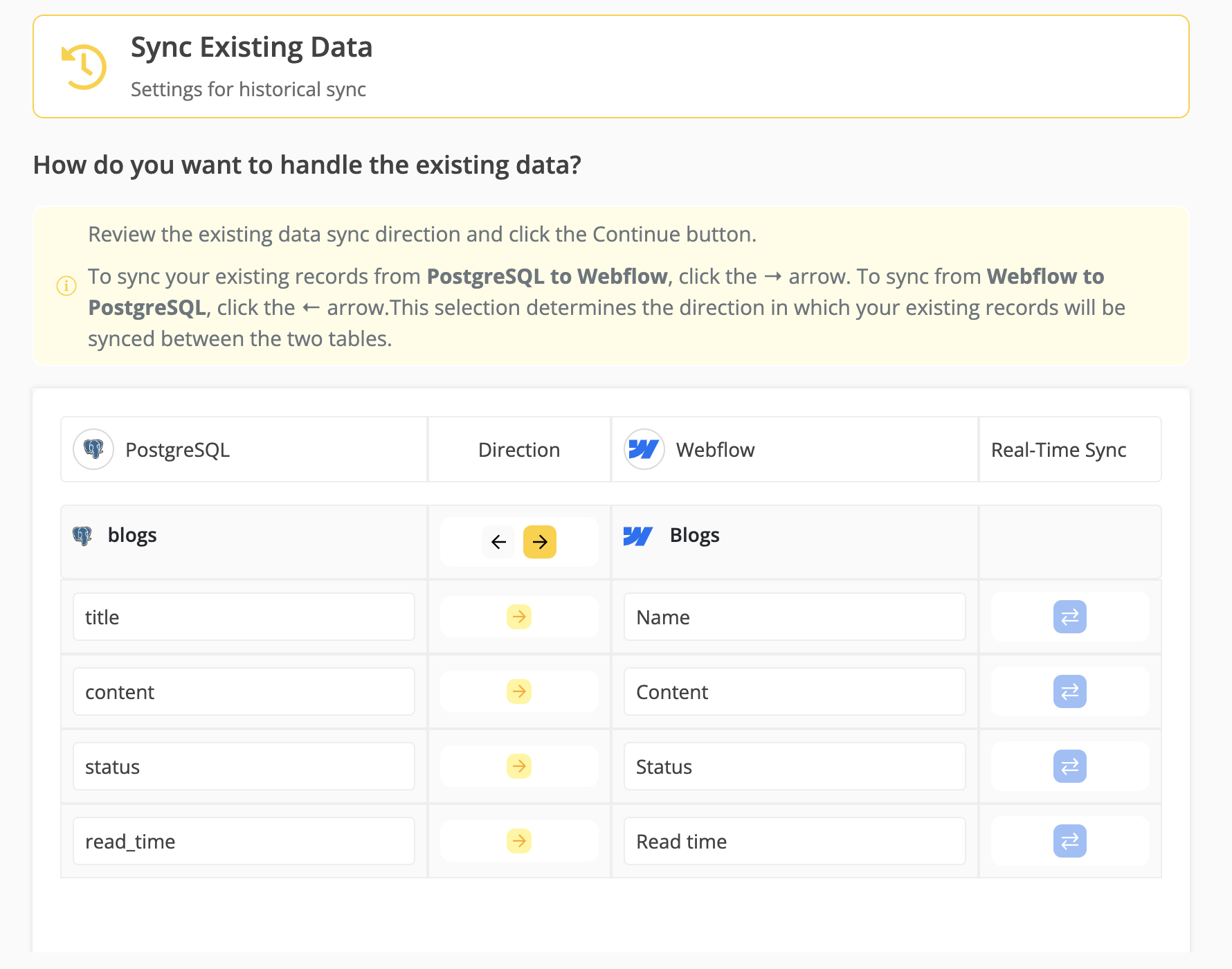

Step 7: Sync Existing Data Configuration

Select the sync direction for your existing data:

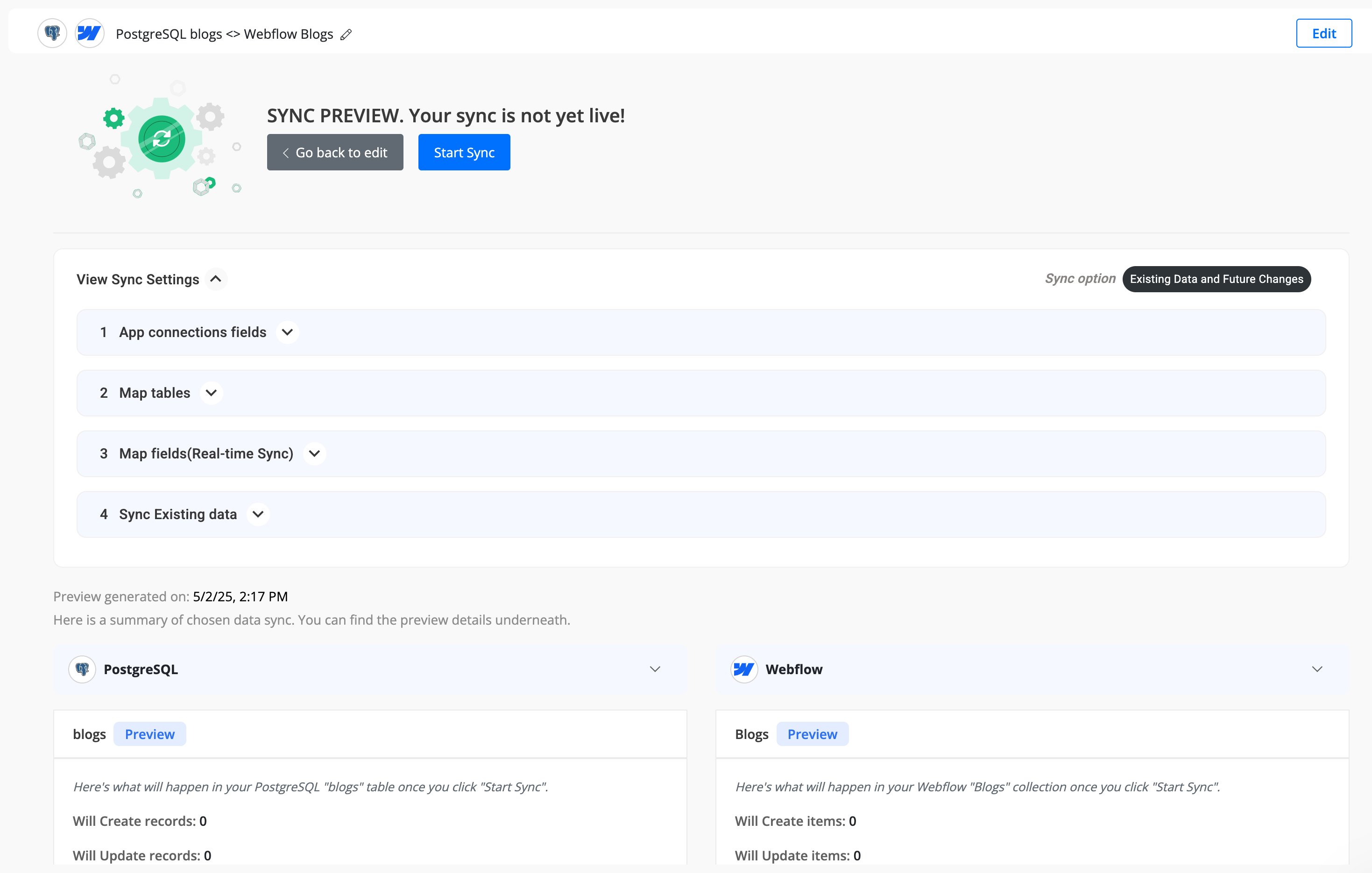

Step 8: Review Sync Preview

1. Preview the sync setup to ensure everything is configured correctly.
2. If all looks good, click "Start Sync."
3. Byteline will sync your existing data and make the sync live.

Configuring a Primary Key for Your PostgreSQL Table

A primary key is required on a table for it to work with data sync. If your PostgreSQL table doesn’t already have a primary key, you can add one using either of the methods below.

Option 1: Add an Auto-Generated Primary Key (Recommended)

Use this method when your table doesn’t already have a suitable column for a primary key. Note: You have to complete steps 1 & 2.

Step 1: Add an identity column

ALTER TABLE blogs
ADD COLUMN id INT GENERATED ALWAYS AS IDENTITY;

Step 2: Add the primary key constraint

After ensuring that the ID column has been created and is unique:

ALTER TABLE blogs ADD PRIMARY KEY (id);

Option 2: Use an Existing Column as Primary Key

Use this method if you already have a column (like title, email, or user_id) that contains unique values.

⚠️ Important: The column you select must have unique and non-null values.

ALTER TABLE blogs ADD PRIMARY KEY (title);

Syncing Data from localhost Using Ngrok

Usually, your database wouldn't be on the local machine. But if it is, and you want to sync data to or from it using Byteline, Ngrok can help expose your local database to the internet securely.

Steps to Access a Local Database Using Ngrok

1. Install Ngrok

Download and install Ngrok from https://ngrok.com/download. Follow the installation instructions provided for your operating system.

2. Expose Your Local Database Using Ngrok

Ngrok can expose a TCP connection for your local database. Use the following command to expose your database:

ngrok tcp <port>

Replace <port> with the port your database is running on (e.g., 5432 ).

Example for a PostgreSQL database running on port 5432:

ngrok tcp 5432

Ngrok will generate a public TCP address (e.g., 0.tcp.ngrok.io:12345) that tunnels to your local database.

3. Update Database Configuration in Byteline

In the Byteline data sync configuration, use the Ngrok TCP address as the database host. For example:

Host: 0.tcp.ngrok.io

Port: 12345

Username: Your database username

Password: Your database password

Database Name: The name of your database

4. Test the Connection

Use the "Test Connection" feature in Byteline to ensure the platform can connect to your local database through the Ngrok TCP tunnel.

5. Run the Sync

After successfully testing the connection, initiate the data sync as you normally would. Byteline will access your local database through the Ngrok tunnel.
